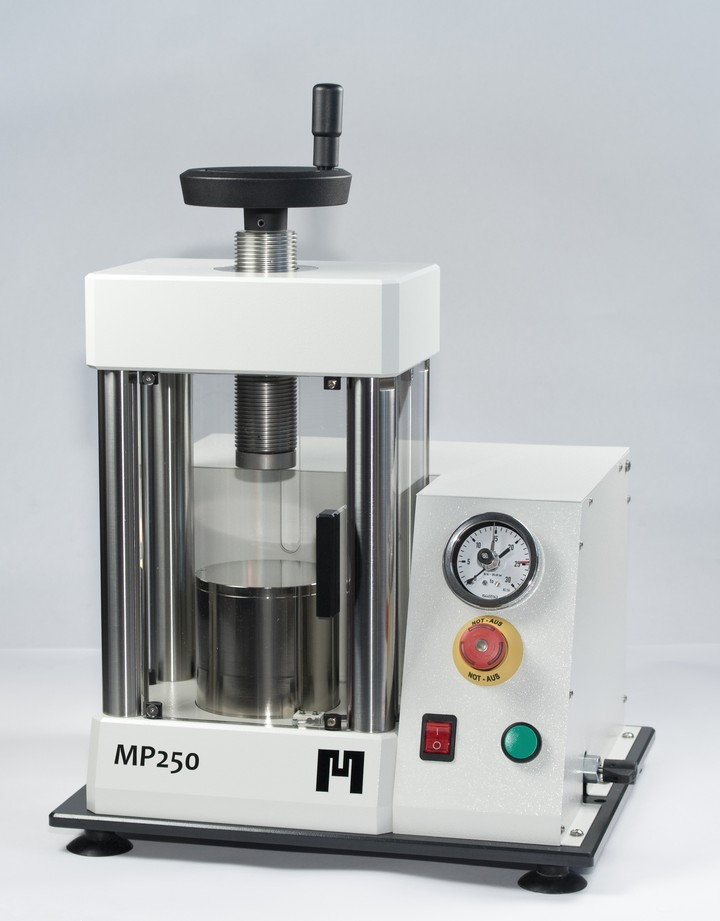

Maassen motorized hydraulic pellet press MP250M
The MP250M motor power press is made to handle a large number of press actions.
You control the load by positioning a red mark inside the 63 mm pressure gauge. Although it is possible to set 2 tons as minimum load, we recommend to use die sets not smaller than 8 mm because the 63 mm pressure gauge scale is 1 ton. So the load is reproducible as long as the mark is at the same position, but it is not exact enough for very small dies. The MP250M is able to hold the load for several hours.
Safety
We integrated two additional safety features compared to the manual versions: a safety switch to prevent press actions with opened cover and an illuminated emergency stop button.
Usage
The handling is very easy: pushing the green button starts the action and it stops at the marked position. The manual release valve allows a smooth pressure decrease to avoid cracks in your pellets.
Order number | 54MP250M |
---|---|
Size (H min/max x W x D) | 497/609 x 360 x 400 mm |
Width between pillars | 150 mm |
Min. / Max. clear height | 73 mm / 185 mm |
Display / resolution | Analog, 0,5 T |
Spindler diameter | 40 mm |
Max. way of spindle | 112 mm |
Piston diameter / max. lifting | 105 mm / 22 mm |
Net. weight | 68 kg |
Mains Connection | 230 V / 50-60 Hz / 250 W |
Manufacturer | Maassen GmbH |
